TILT TRAY DELIVERY

Shipping-Container-Delivery-Warning copy.png

WARNING – It is difficult to select the correct delivery type and the team at S & L Petersen & Co are here to help and advise you through the process. It is however critical that the correct delivery type is selected. The wrong delivery type, or site conditions not conducive to delivery (including extend wait time of more than 30min as a result of the site not being ready to access etc), will result in a “Failed Delivery”, or additional wait time charges; this can become very expensive to the CUSTOMER, and to be avoided at all costs. The responsibility is solely on the customer (who knows the site location) to ensure site conditions, and container delivery type are correct. Site conditions may include (but not limited to) things like boggy, sloped, or uneven ground; overhead wires/tree branches/house eves/other structures; raised site for the container, container stacking, and door direction for loading

Tilt Tray delivery is an excellent and cost-effective choice for delivery, where access and space is not strictly limited. In this method, the tray of the truck lifts up from the cab, allowing the container to slide in a controlled and safe manner slowly until the back edge is on the ground. The truck then drives forward, and the container remains stationary, continuing to gently slide lower down the tray of the truck until it is wholly unloaded.

ChatGPT Image May 29, 2026, 08_26_35 AM (1).png

10’ (3m) or 20’ (6m) container delivery


Space requirements:

  • Allow a tilting height of 5m for a 20’ container.

  • Allow a traveling height of 4.2m for a standard-height container

  • Allow a total Length of 20m, for a 20’ Container on a truck whose maximum load is 1 x 20 container only.

  • Allow a Width 3.5m for either 20’ or 40’ deliveries


NOTE: Max 9 tons

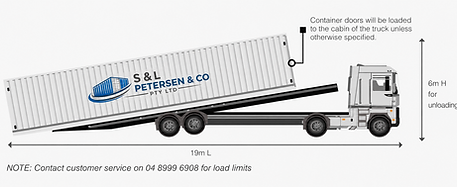

ChatGPT Image May 29, 2026, 09_18_44 AM.png

40’ (12m) container delivery



Space requirements:

  • Allow a tilting height of 6m for a 40’ container.

  • Allow a total Length of 40m, for a 40’ Container on a semi.

  • Allow and a Width 3.5m for either 20’ or 40’ deliveries.



NOTE: Max 9 tons

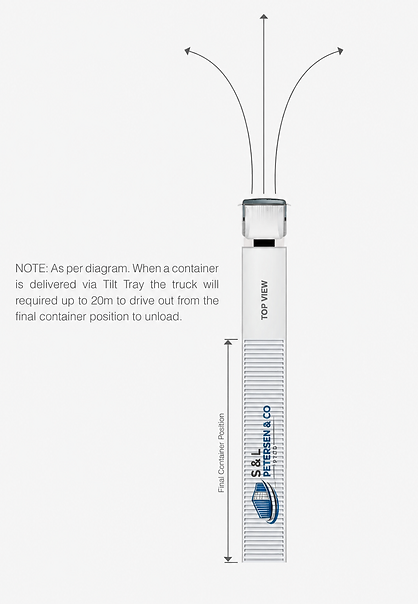

ChatGPT Image May 29, 2026, 09_52_26 AM.png

40’ (12m) container delivery



Space requirements:

  • Allow a tilting height of 6m for a 40’ container.

  • Allow a total Length of 40m, for a 40’ Container on a semi.

  • Allow and a Width 3.5m for either 20’ or 40’ deliveries.



NOTE: Max 9 tons

ChatGPT Image May 29, 2026, 09_18_44 AM.png
